Designing the API

Auth Page

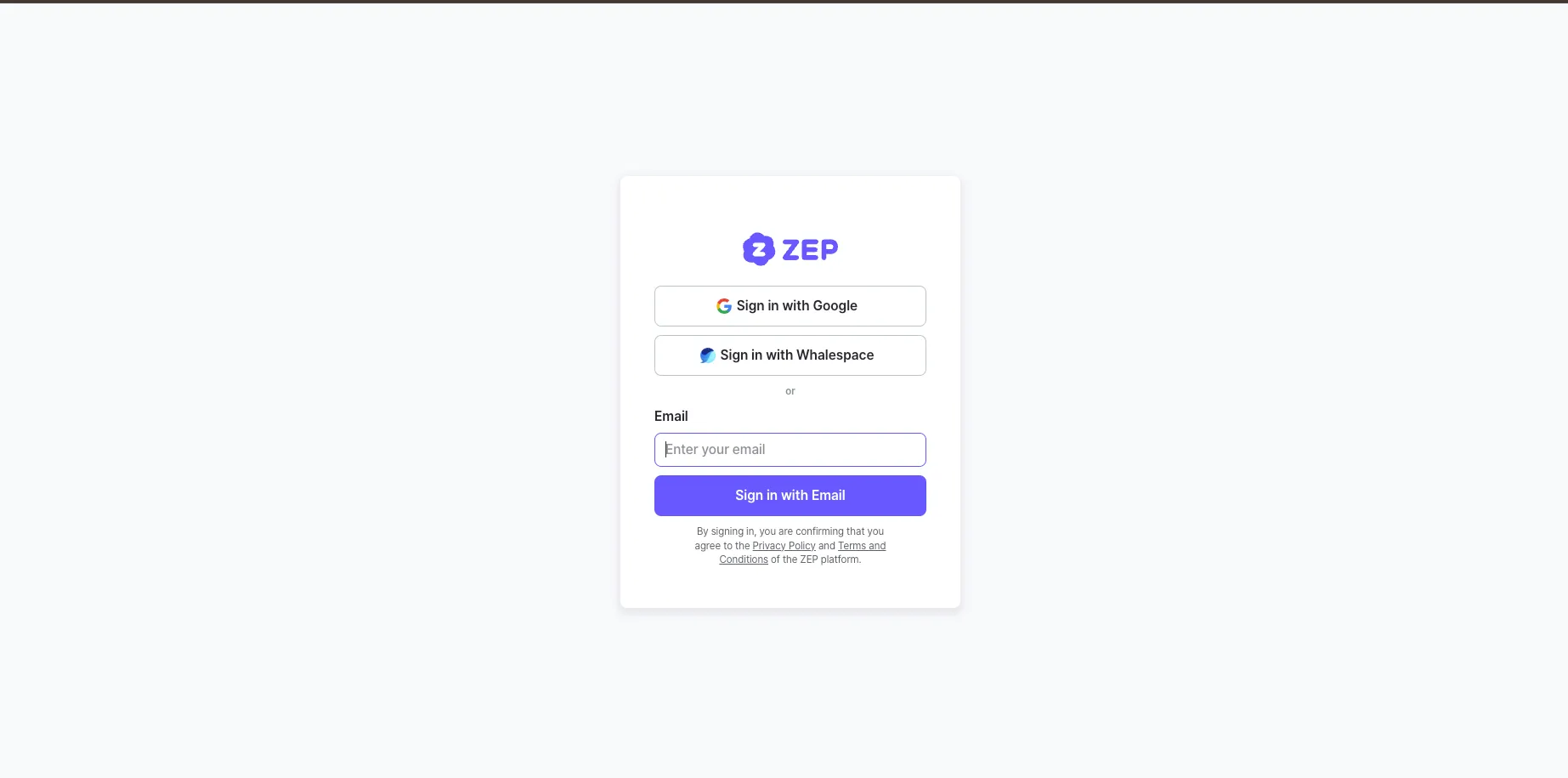

Screenshot 2024-10-30 at 2.34.32 AM.png

Signup

POST /api/v1/signup

{
  "username": "harkirat",
  "password": "123random",
  "type": "admin" // or user
}

Returns Status code 200, 400

{
  "userId": "1"
}

Signin

POST /api/v1/signin

{
  "username": "harkirat",
  "password": "123random"
}

Returns

{
   "token": "123mkadsfjaidsj90120j0dj0jkq0dwj"
}

Returns a 200/403

User information page

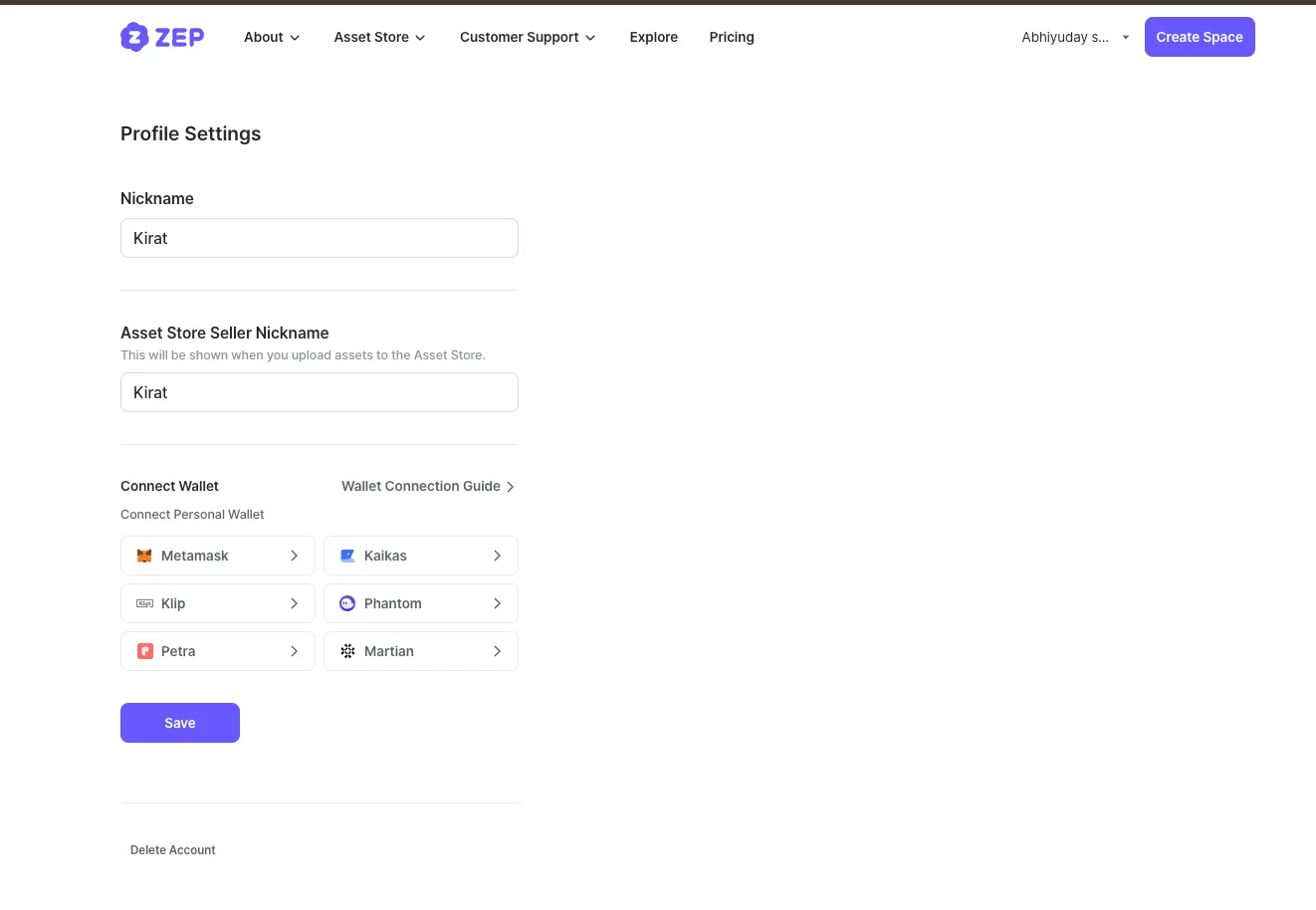

Screenshot 2024-10-30 at 2.45.38 AM.png

Update metadata

POST /api/v1/user/metadata
```
{
  "avatarId": "123",
}
```
Returns 200, 400, 403

Get available avatars

GET /api/v1/avatars

{
  "avatars": [{
     "id": 1,
     "imageUrl": "https://image.com/avatar1.png",
     "name": "Timmy"
  }]
}

Get other users metadata (name and avatarUrl)

GET /api/v1/user/metadata/bulk?ids=[1, 3, 55] Returns

{
  "avatars": [{
    "userId": 1,
    "imageUrl": "https://image.com/cat.png"
  }, {
    "userId": 3,
    "imageUrl": "https://image.com/cat2.png"
  }, {
    "userId": 55,
    "imageUrl": "https://image.com/cat3.png"
  }]
}

Space dashboard

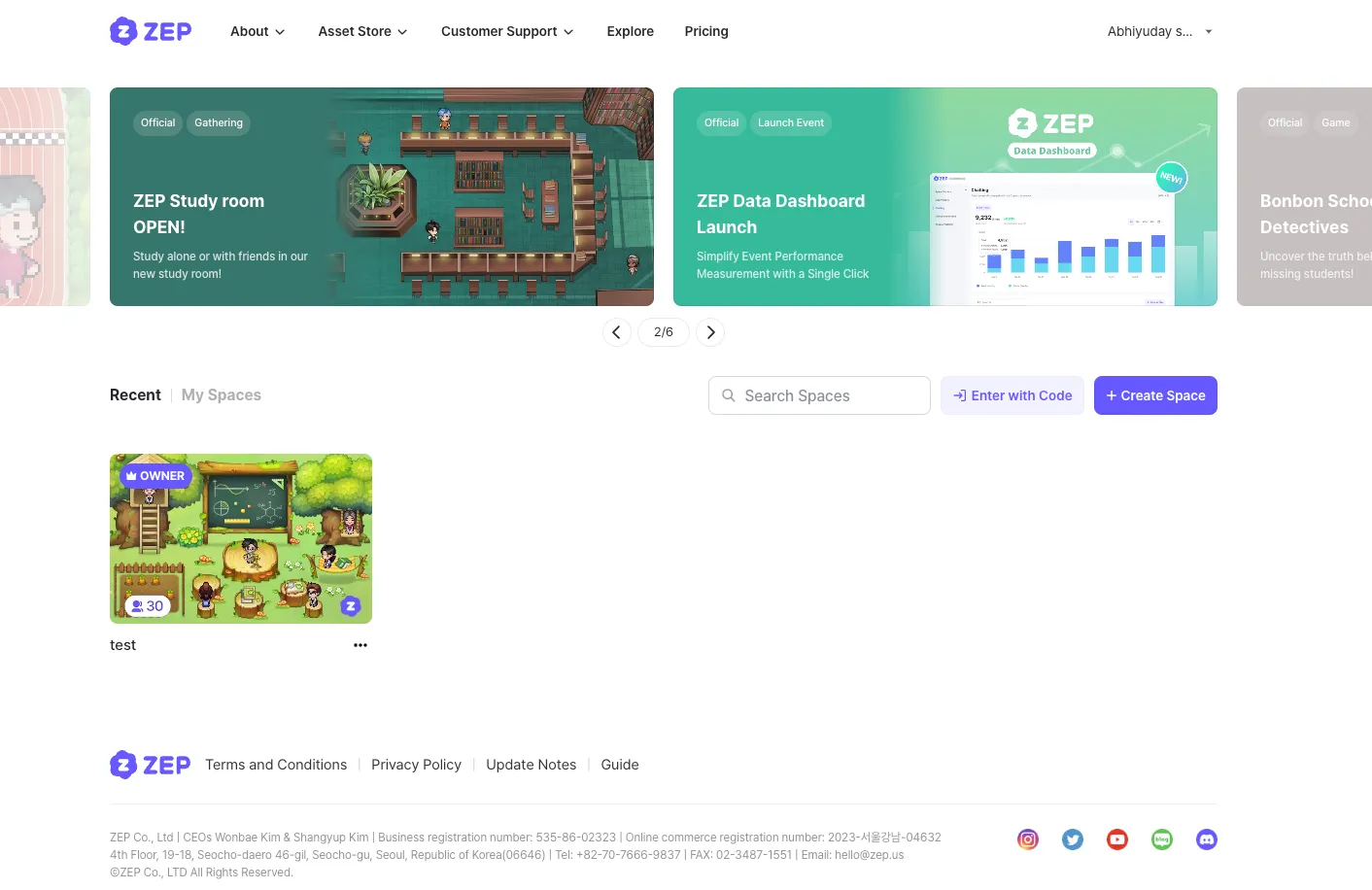

Screenshot 2024-10-30 at 2.46.02 AM.png

Create a Space

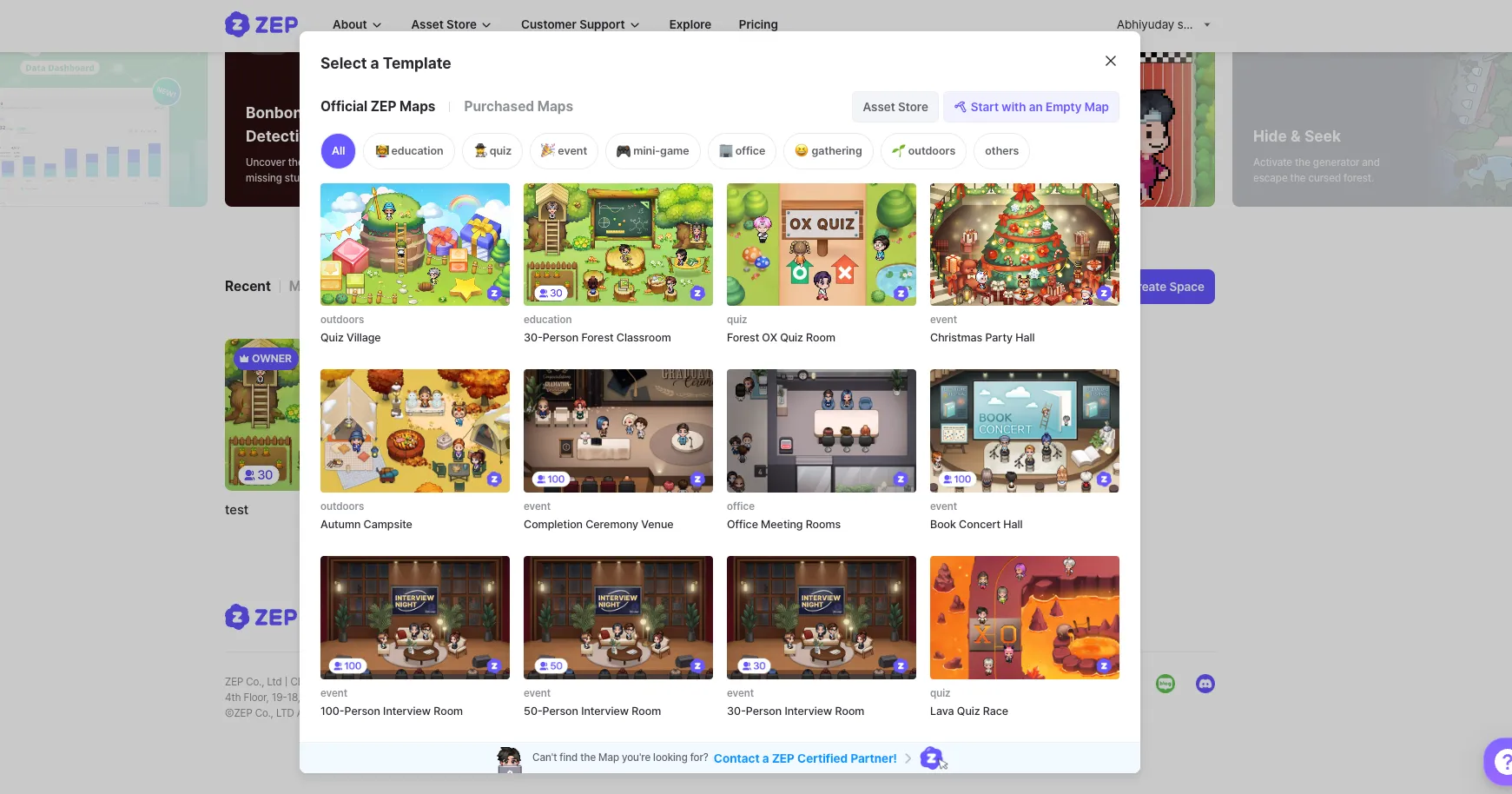

Screenshot 2024-10-30 at 3.28.47 AM.png

POST /api/v1/space

{
   "name": "Test"
   "dimensions": "100x200",
   "mapId": "map1"
}

Returns 200/400

{
   "spaceId": "xlapwep1"
}

Delete a space

DELETE /api/v1/space/:spaceId

Returns 200, 400

Get my existing spaces

GET /api/v1/space/all

{
  "spaces": [{
     "id": 1,
     "name": "Test"
     "dimensions": "100x200",
     "thumbnail": "https://google.com/cat.png"
  }, {
     "id": 2,
     "name": "Test"
     "dimensions": "100x200",
     "thumbnail": "https://google.com/cat.png"
  }]
}

Arena

Get a space

GET /api/v1/space/:spaceId

Returns

{
   "dimensions": "100x200",
   "elements": [{
        id: 1,
       element: {
         "id": "chair1",
         "imageUrl": "https://encrypted-tbn0.gstatic.com/shopping?q=tbn:ANd9GcRCRca3wAR4zjPPTzeIY9rSwbbqB6bB2hVkoTXN4eerXOIkJTG1GpZ9ZqSGYafQPToWy_JTcmV5RHXsAsWQC3tKnMlH_CsibsSZ5oJtbakq&usqp=CAE",
         "static": false,
         "height": 1,
         "width": 1
       }
       x: 20,
       y: 20
     }, {
        id: 2,
       element: {
         "id": "chair2",
         "imageUrl": "https://encrypted-tbn0.gstatic.com/shopping?q=tbn:ANd9GcRCRca3wAR4zjPPTzeIY9rSwbbqB6bB2hVkoTXN4eerXOIkJTG1GpZ9ZqSGYafQPToWy_JTcmV5RHXsAsWQC3tKnMlH_CsibsSZ5oJtbakq&usqp=CAE",
         "static": false,
         "height": 1,
         "width": 1
       }
       x: 18,
       y: 20
     }, {
        id: 3,
       element: {
         "id": "table1",
         "imageUrl": "https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS5El5F7QtBVHhSpkQMSzPSDoiQWl3Q7fRG3w&s",
         "static": true,
         "height": 1,
         "width": 1
       }
       x: 19,
       y: 20
     }
   ]
}

Returns 200/400

Add an element

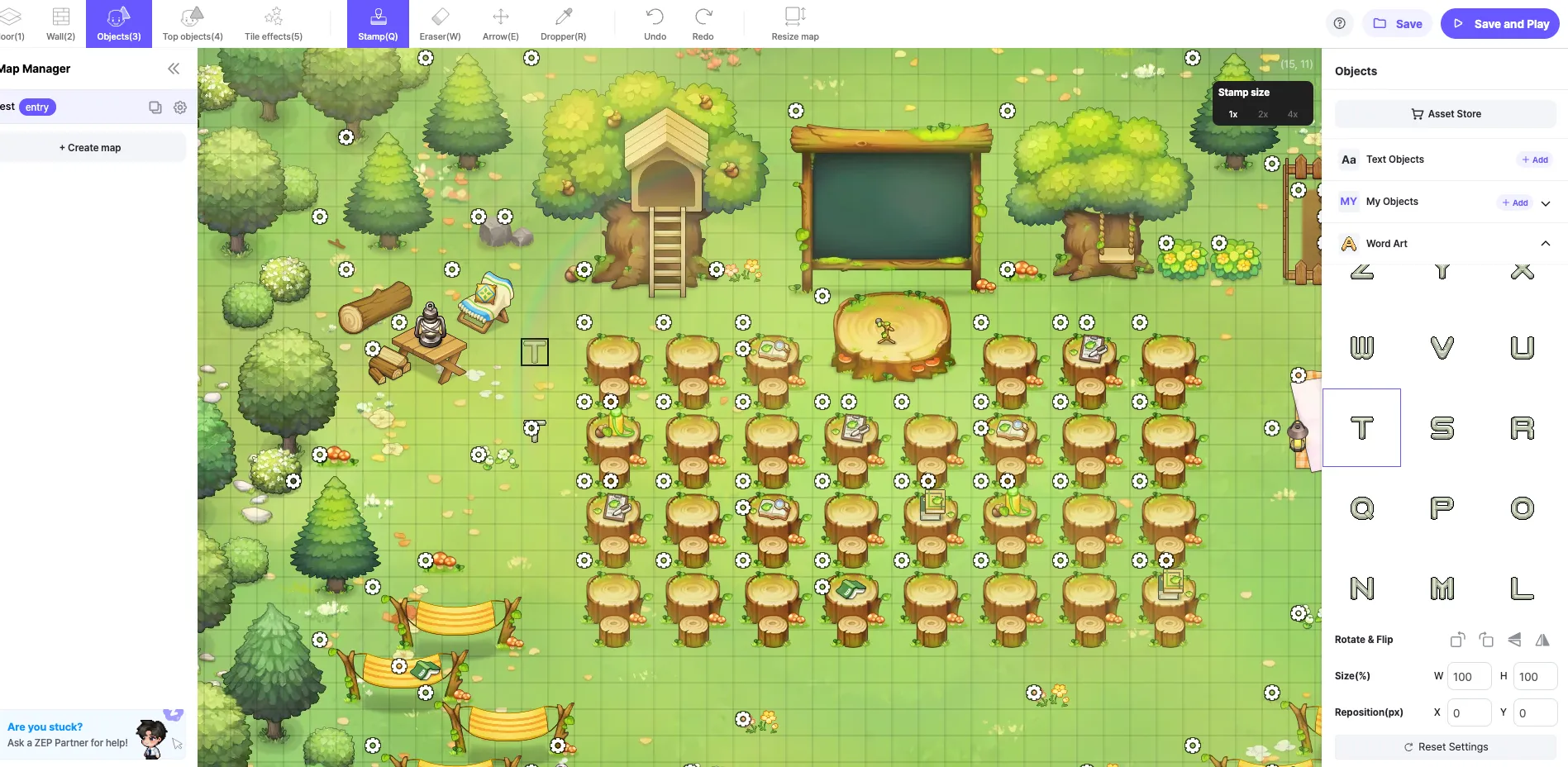

Screenshot 2024-10-30 at 2.42.57 AM.png

POST /api/v1/space/element

{
  "elementId": "chair1",
  "spaceId": "123",
  "x": 50,
  "y": 20
}

Status code 200, 400

Delete an element

DELETE /api/v1/space/element
```
{
   "id": "1"
}
```

See all available elements

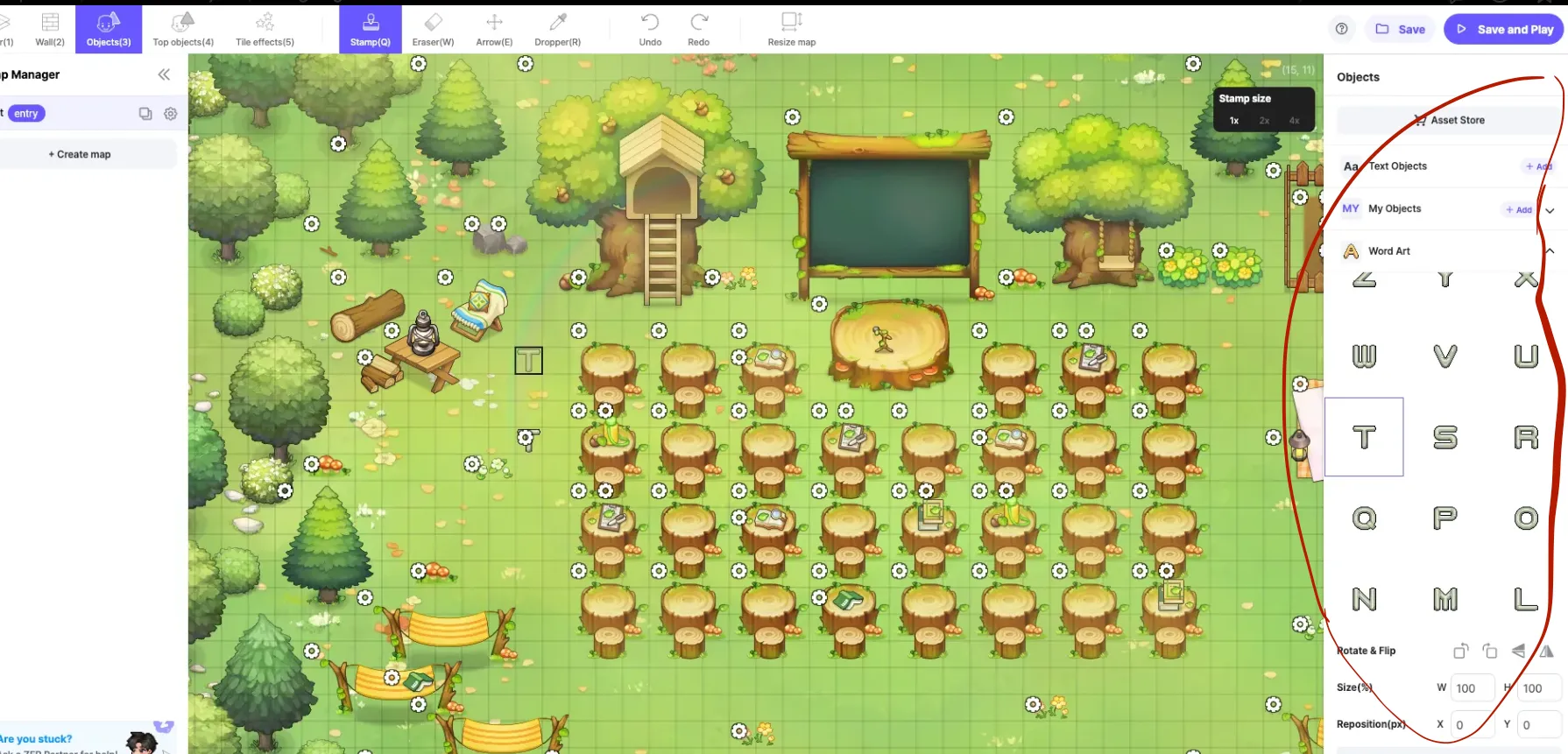

Screenshot 2024-10-30 at 3.29.37 AM.png

GET /api/v1/elements

{
  "elements": [{
        id: "chair1",
       imageUrl: "https://encrypted-tbn0.gstatic.com/shopping?q=tbn:ANd9GcRCRca3wAR4zjPPTzeIY9rSwbbqB6bB2hVkoTXN4eerXOIkJTG1GpZ9ZqSGYafQPToWy_JTcmV5RHXsAsWQC3tKnMlH_CsibsSZ5oJtbakq&usqp=CAE",
       width: 20,
       height: 20,
       static: true
     }]
}

Admin/Map Creator endpoints

Create an element

POST /api/v1/admin/element

{
  "imageUrl": "https://encrypted-tbn0.gstatic.com/shopping?q=tbn:ANd9GcRCRca3wAR4zjPPTzeIY9rSwbbqB6bB2hVkoTXN4eerXOIkJTG1GpZ9ZqSGYafQPToWy_JTcmV5RHXsAsWQC3tKnMlH_CsibsSZ5oJtbakq&usqp=CAE"
  "width": 1,
  "height": 1,
  "static": true // weather or not the user can sit on top of this element (is it considered as a collission or not)
}

Returns

{
  id: "id_of_the_element"
}

Update an element

PUT /api/v1/admin/element/:elementId (Cant update dimensions once created)

{
  "imageUrl": "https://encrypted-tbn0.gstatic.com/shopping?q=tbn:ANd9GcRCRca3wAR4zjPPTzeIY9rSwbbqB6bB2hVkoTXN4eerXOIkJTG1GpZ9ZqSGYafQPToWy_JTcmV5RHXsAsWQC3tKnMlH_CsibsSZ5oJtbakq&usqp=CAE"
}

Create an avatar

POST /api/v1/admin/avatar

{
  "imageUrl": "https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcQm3RFDZM21teuCMFYx_AROjt-AzUwDBROFww&s",
  "name": "Timmy"
}

Returns

{
   "avatarId": "123"
}

Create a map

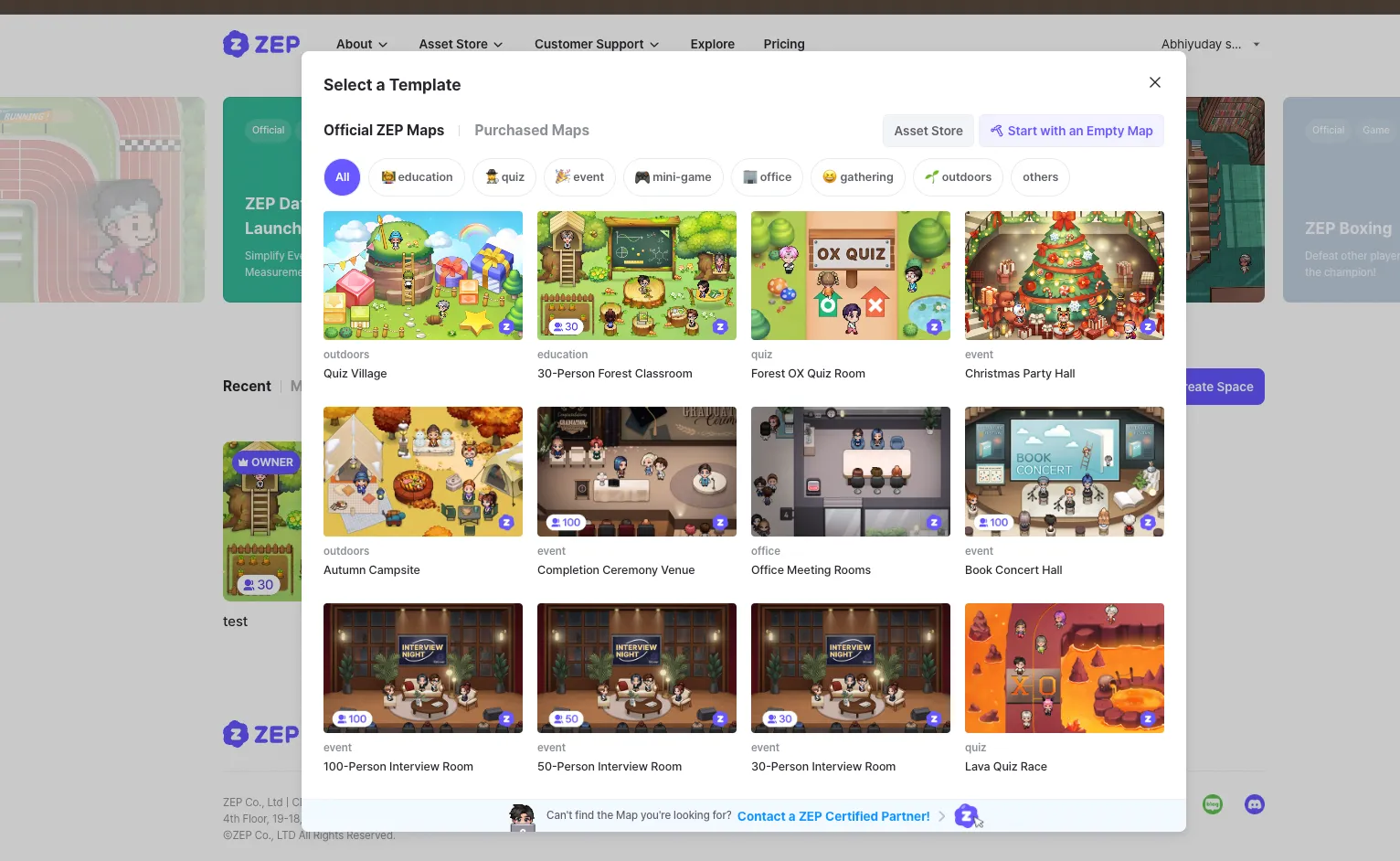

Screenshot 2024-10-30 at 2.36.16 AM.png

/api/v1/admin/map

{
   "thumbnail": "https://thumbnail.com/a.png",
   "dimensions": "100x200",
   "name": "100 person interview room",
   "defaultElements": [{
       elementId: "chair1",
       x: 20,
       y: 20
     }, {
       elementId: "chair2",
       x: 18,
       y: 20
     }, {
       elementId: "table1",
       x: 19,
       y: 20
     }, {
       elementId: "table2",
       x: 19,
       y: 20
     }
   ]
}

Returns

{
  id: mapId
}

Auth

All authenticated endpoints should be hit with an Authorization header

{
  "authorization": "Bearer token_received_after_login"
}
